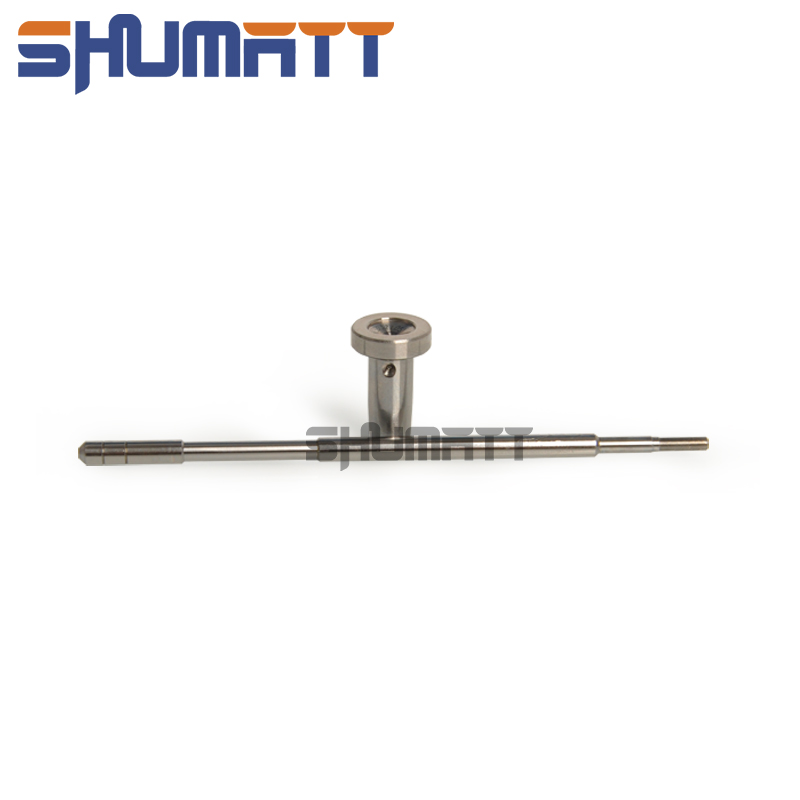

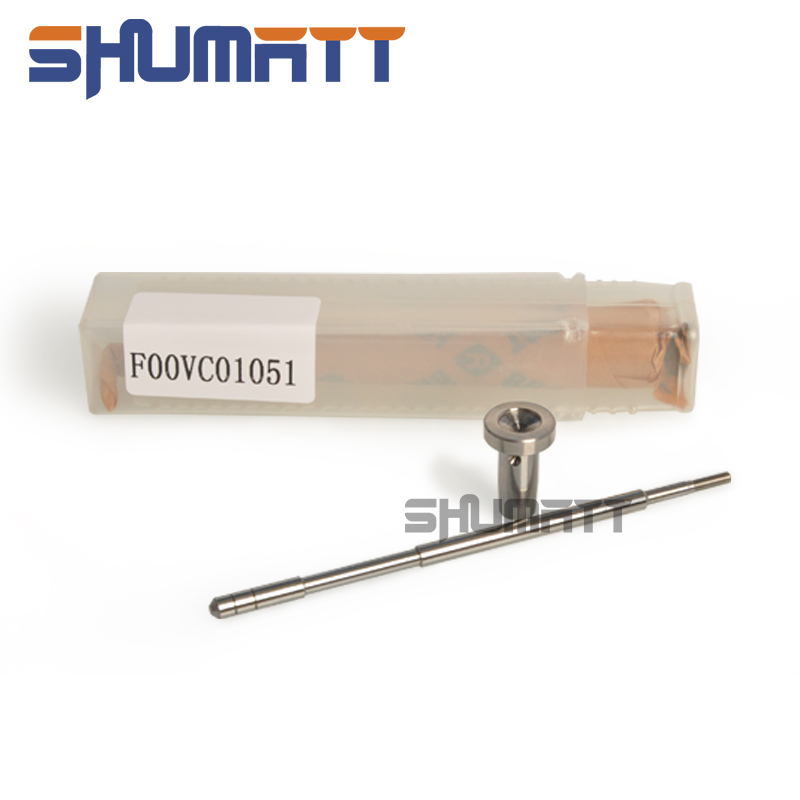

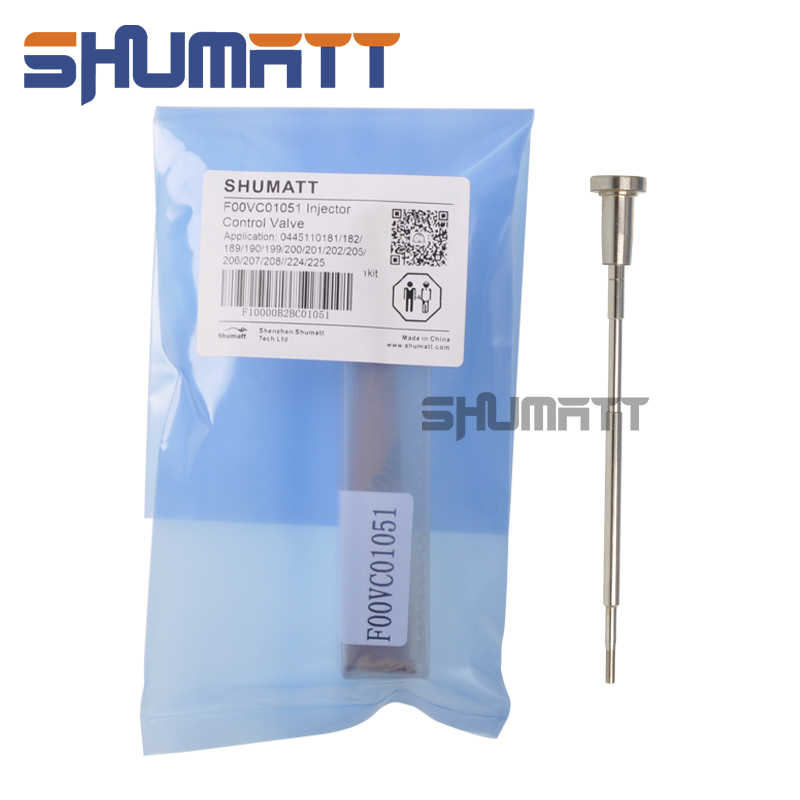

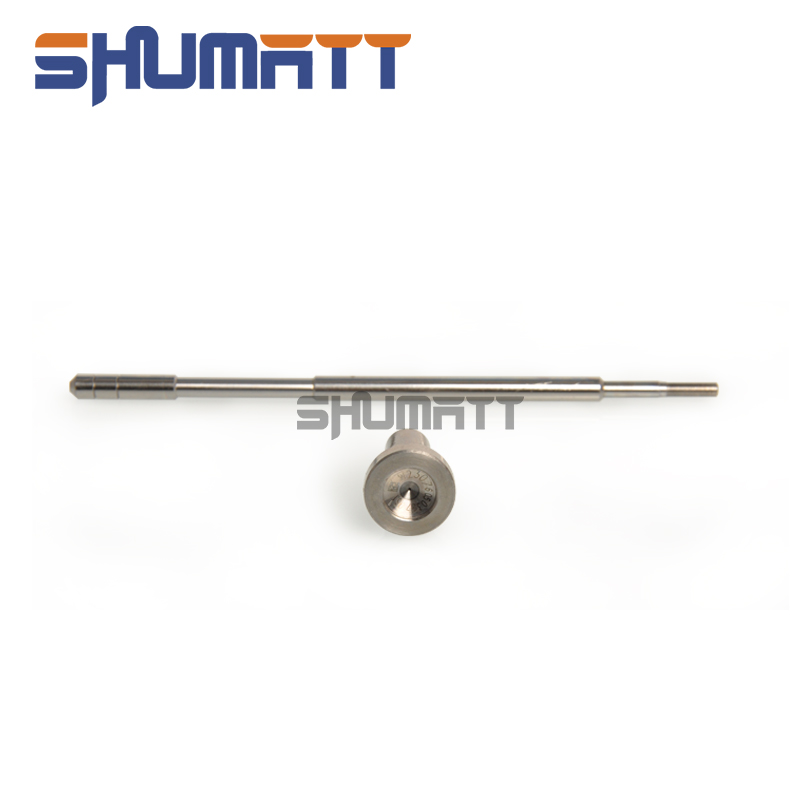

1. F00VC01051 Injector Valve Assembly’s Introduction
1.1.F00VC01051 Injector Valve Assembly’s Basic Information
Title | China made brand new fuel injector valve assembly F00VC01051 |
SKU1 | G1S8F00VC01051 |
SKU2 | G1S8F00VC01051/ F10000B2BC01051 |
SKU3 | G1L10F00VC01051/ L10000B2BC01051 |
SKU4 | G1F2F00VC01051/F20000B2BC01051(High quality) |
1.2.F00VC01051 Injector Valve Assembly’s Application Information for Injectors
(1)F00VC01051 Injector Valve Assembly’s Car Model Matching Information
Injector Part Number | Car Model | OE Number | OE Number | OE Number | OE Number | OE Number | OE Number |
0 445 110 181 | DODGE | R5135154AB |
|
|
|
|
|
FREIGHTLINER | R5135154AB |
|
|
|
|
|
MERCEDES-BENZ | 612 070 04 87 | A 612 070 04 87 | R5135154AB | 612 070 03 87 | A 612 070 03 87 |
|
0 445 110 182 | MERCEDES-BENZ | 612 070 04 87 | A 612 070 04 87 | 612 070 03 87 | A 612 070 03 87 |
|
|
0 445 110 189 | MERCEDES-BENZ | 611 070 16 87 | A 611 070 16 87 | A 611 070 16 87 06 | 611 070 14 87 | A 611 070 14 87 | 611 070 16 87 06 |
0 445 110 190 | MERCEDES-BENZ | 611 070 16 87 | A 611 070 16 87 | 611 070 14 87 | A 611 070 14 87 |
|
|
0 445 110 199 | MERCEDES-BENZ | 611 070 17 87 | A 611 070 17 87 | A 611 070 13 87 | 611 070 13 87 |
|
|
0 445 110 200 | MERCEDES-BENZ | 611 070 17 87 | A 611 070 17 87 | 611 070 13 87 | A 611 070 13 87 |
|
|
0 445 110 201 | MERCEDES-BENZ | 613 070 08 87 | A 613 070 08 87 | A 613 070 05 87 | 613 070 05 87 |
|
|
0 445 110 202 | MERCEDES-BENZ | 613 070 08 87 | A 613 070 08 87 | 613 070 05 87 | A 613 070 05 87 |
|
|
0 445 110 205 | MERCEDES-BENZ | 613 070 09 87 | A 613 070 09 87 |
|
|
|
|
0 445 110 206 | MERCEDES-BENZ | 613 070 09 87 | A 613 070 09 87 |
|
|
|
|
0 445 110 207 | MERCEDES-BENZ | 628 070 05 87 | A 628 070 05 87 |
|
|
|
|
0 445 110 208 | MERCEDES-BENZ | 628 070 05 87 | A 628 070 05 87 |
|
|
|
|
0 445 110 224 | MERCEDES-BENZ | 612 070 07 87 | A 612 070 07 87 |
|
|
|
|
0 445 110 225 | MERCEDES-BENZ | 612 070 07 87 | A 612 070 07 87 |
|
|
|
|
(2)F00VC01051 Injector Valve Assembly’s Application for Injectors’ Part Number
Injector Series | Injector Part Number | System Pressure | Re-manufactured Part Number | System Pressure | Universal Number | System Pressure | Universal Number | System Pressure | Universal Number |
CRI1-13 | 0 445 110 181 | 1350 | 0 986 435 053 | 1350 | 0 445 110 182 |
|
|
|
|
CRI1-13 | 0 445 110 182 |
| 0 986 435 053 | 1350 | 0 445 110 181 | 1350 |
|
|
|
CRI1-13 | 0 445 110 189 | 1350 | 0 986 435 055 | 1350 |
|
|
|
|
|
CRI1-13 | 0 445 110 190 | 1350 | 0 986 435 055 | 1350 | 0 445 110 189 | 1350 |
|
|
|
CRI1-13 | 0 445 110 199 | 1350 | 0 986 435 061 | 1350 | 0 445 110 200 |
|
|
|
|
CRI1-13 | 0 445 110 200 |
| 0 986 435 061 | 1350 | 0 445 110 199 | 1350 |
|
|
|
CRI1-13 | 0 445 110 201 | 1350 | 0 986 435 063 | 1350 | 0 445 110 202 |
|
|
|
|
|
|
| 0 986 435 063 | 1350 |
|
|
|
|
|
CRI1-13 | 0 445 110 202 |
| 0 986 435 063 | 1350 | 0 445 110 201 | 1350 |
|
|
|
CRI1-13 | 0 445 110 205 | 1350 | 0 986 435 067 | 1350 | 0 445 110 206 |
|
|
|
|
CRI1-13 | 0 445 110 206 |
| 0 986 435 067 | 1350 | 0 445 110 205 | 1350 |
|
|
|
CRI1-13 | 0 445 110 207 |
| 0 986 435 069 | 1350 | 0 445 110 208 |
|
|
|
|
CRI1-13 | 0 445 110 208 |
| 0 986 435 069 | 1350 | 0 445 110 207 |
|
|
|
|
CRI1-13 | 0 445 110 224 |
|
|
| 0 445 110 225 |
|
|
|
|
CRI1-13 | 0 445 110 225 |
|
|
| 0 445 110 224 |
|
|
|
|
1.3.F00VC01051 Injector Valve Assembly’s Specifications and Dimensions Parameters
Valve Assembly Size: 13 cm*2 cm *2 cm
Valve Assembly Box Size:14 cm *3 cm *3 cm
Valve Assembly Packing Size:31 cm *12 cm
Valve Assembly Net Weight:0.03kg
Valve Assembly Gross Weight:0.03kg
Valve Assembly Quality:China Made Brand New Injector Valve Assembly
Valve Assembly MOQ:4PCS
1.4.F00VC01051 Injector Valve Assembly’s Quality Control
(1)Valve Assembly Testing
All parts of the injector valve assembly are subjected to precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.
(2)Injector Valve Assembly Inspection
The factory inspection of the injector valve assembly is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same injector valve assembly for a total of no less than three times for factory inspection, and the fuel injector installation testing environment are progressed in dust-free workshop.
(3)Injector Valve Assembly Installation
When matching the valve cap and valve steam,Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each valve assembly meets the factory standards and use standards.
1.5.F00VC01051 Injector Valve Assembly’s Customized Service
(1)Valve Assembly’s Customized Service Requirements:
Customized valve assembly box are no less than 100 pieces.
Customized valve assembly groove no less than 100 pieces.
The purchased of customized valve assembly are no less than 1000 pieces.
The purchased of customized valve cap engraving contents are no less than 1000 pieces.
The purchased of customized valve colors are no less than between 1000 -10000 pieces.
Customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.
Once the customized injector valve assembly is sold, it can not be returned or exchanged if there is no quality problems.
2.F00VC01051 Injector Valve Assembly Technical Support
2.1.F00VC01051 Valve assembly Technical Support Obtaining Methods
(1)Valve assembly Technical file, visit http://shumatt.com to get the technical File
(2)Injector Technical Videos
Facebook:Visit https://www.facebook.com/hison.li constantly follow can get more information.
YouTube:https://www.youtube.com/channel/UCByvYBx7VjV_mAfxh_Hu-aw to get the technical videos,constantly follow can get more information.
Shumatt: Visit http://shumatt.com to get the technical videos.
(3)Valve Assembly Information Query Software
TruckBook Parts EPC APP,Android/Apple App Store download and install,visit http://shumatt.com to get the download and installation tutorial
(4)Search The valve assembly test data through TruckBook Parts EPC APP.
3.F00VC01051 Valve Assembly’s Purchase and Delivery.
3.1.F00VC01051 Valve Assembly’s Packing
Domestic express packaging:Usually wrapped in waterproof scotch tape, such as picture No.2.
International express packaging:Wrapped with waterproof yellow tape After wrapping the black protective film, such as picture No. 3.
Pallet Shipping:Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No. 4,
Also, the products can be packaged according to customers’ requirements.
The packing tray is made of plastic and can be recycled.
Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are nondegradable materials, please dispose of them properly.
Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.
Pic No.2 | Pic No.3 |
Domestic express packaging:Wrapped by Transparent tape black protective film | International express packaging: Wrapped with yellow tape after wrapping |
Pic No.4
|
Pallet Shipping:Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties |
